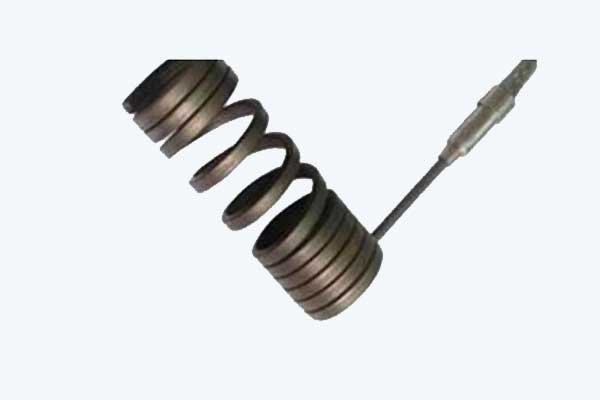

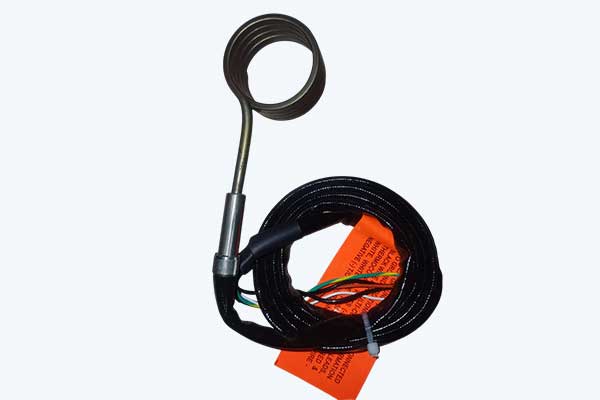

Hot Runner Coil Heater
Hot Runner Coil Heaters are high-watt density, compact heating elements designed specifically for heating hot runner nozzles and manifolds in injection molding systems. Engineered for precision and performance, these heaters consist of a nickel-chrome resistance wire uniformly wound over a high-purity magnesium oxide core, all enclosed in a stainless steel sheath. Their coiled configuration ensures excellent thermal contact with the heated surface, providing fast, uniform, and controlled heat transfer in demanding applications.
Key Features
- Ultra-high watt density (up to 15 W/cm²)
- Operating temperature up to 750°C
- Compact and flexible design suitable for tight spaces
- Precise and even heat distribution
- Rapid heat-up and excellent thermal response
- Optional inbuilt Thermocouple (Type J or K) for accurate feedback
- Variety of coil shapes: straight, square, round, or conical
- Long service life in continuous-duty applications
Applications
- Injection molding hot runner systems
- Manifolds and nozzles in plastic molds
- Packaging and sealing machines
- Medical device manufacturing
- Aerospace and automotive plastic part production
- Dies and small precision parts heating
